BOTOCONSTRUCT PVC Formwork

BOTO PVC Formwork a new type of green, eco-friendly formwork that has rapidly gained prominence in the construction industry in recent years. It is primarily used to replace traditional wooden formwork,bamboo-plywood formwork, and modular steel formwork.
formwork-主图1
formwork-主图1

BOTOCONSTRUCT PVC Formwork

Facebook
Twitter
LinkedIn

BOTO Formwork is a high-grade plastic/fiberglass composite sheet with hard-wearing PVC surface for a significantly longer lifespan and uniform concrete faces over a long time of surface.

PVC Formwork
PVC Formwork is more durable than plywood formwork sheet
Substitute where wood formwork sheet qualifies
More light weight, humidity resistant
Effectively increase the number of times it can be reused
Lower the average cost
WhatsApp Us
Product Catalog
Information
WhatsApp Us
Information
Product Catalog

How To Choose

Standard Length 1000mm, 1830mm, 2000mm, 2400mm, 3000mm
Width 915mm, 1200mm or customized
Thickness 12mm,15mm,18mm
Color Blue, Grey or customized
Applications Formwork systems, Walls formwork, Civil works, Foundations

Features

PVC itself does not absorb water, mold, or rot.

The resulting concrete surface is exceptionally flat and smooth.

Demolding is effortless, concrete does not adhere to the surface of PVC formwork.

It possesses the same processing characteristics as wood.

Strong impact resistance, good toughness, not prone to warping or bursting.

PVC Sheet主图-2
BOTOCONSTRUCT White PVC Foam Sheet
Contact Us Now
Black PVC Foam Sheet主图-2
BOTOCONSTRUCT Black PVC Foam Sheet
Contact Us Now
formwork-主图1
BOTOCONSTRUCT PVC Formwork
Contact Us Now

Mechnical Properties

Surface Shore D hardness: 75 – 80
Bending Resistance: 25 – 29 N/mm2
Elasticity Modulus: 1600 – 2000 Mpa
Thermal Conductivity: 0.13 w/mk
Coefficient of linear thermal expansion: 0.07mm/m℃
Non Toxic,Non formaldehyde, Fire behavior according to:
> DIN EN 13501-1: C – s3, d0
> BS 476-7: Class 1
> UL-94: V0

Construction Precautions: Thermal Expansion and Contraction

All plastic materials exhibit certain thermal expansion and contraction characteristics.
During construction in the scorching heat of summer or the severe cold of winter
it is essential to leave a reasonable expansion gap of approximately 1–2 mm at the joints.

The application scope of PVC construction formwork is extremely broad, essentially covering concrete pouring projects across the entire construction industry:

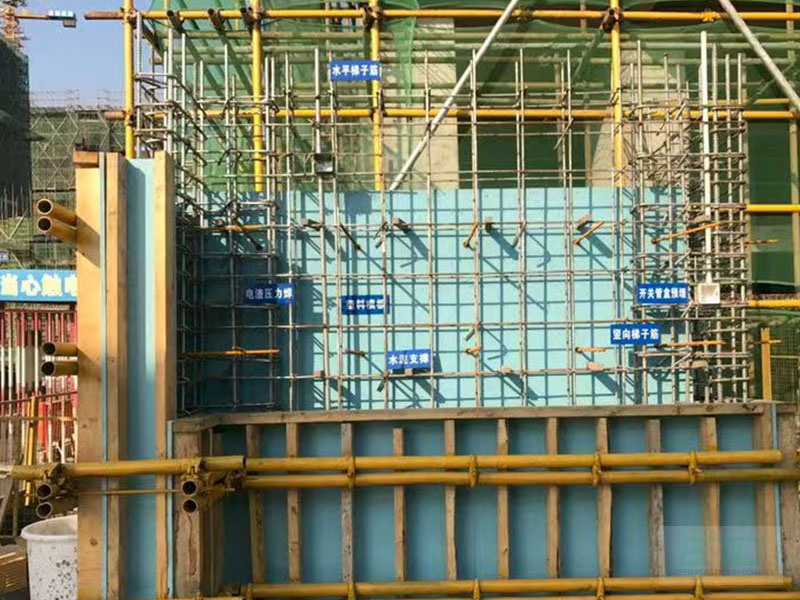

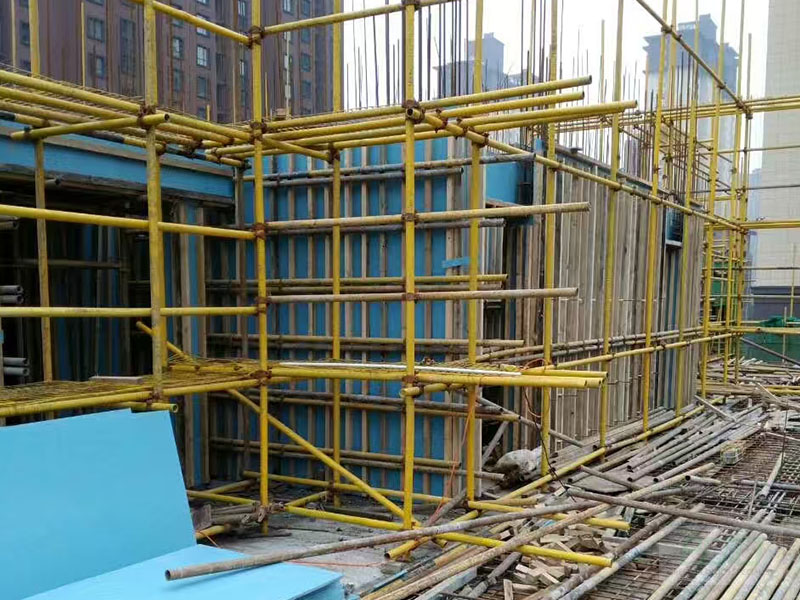

①. Civil and Commercial Building Projects:Widely used for pouring shear walls, core shafts, frame columns, and floor slabs in high-rise residential buildings and office complexes.

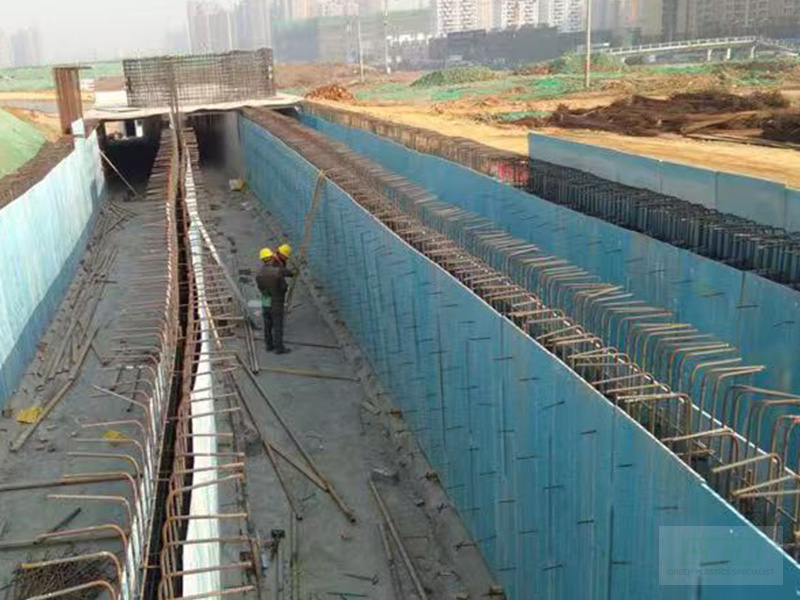

②. Underground and High-Humidity Projects:In environments such as basements, parking garages, utility tunnels, and integrated pipe corridors—where high humidity and poor ventilation prevail—traditional wooden formwork is highly susceptible to mold and rot. PVC formwork, conversely, serves as the ideal choice for such projects.
③. Water Conservancy and Hydropower Projects:Concrete pouring applications for structures that are in constant contact with water sources, such as embankments, dams, and irrigation channels.

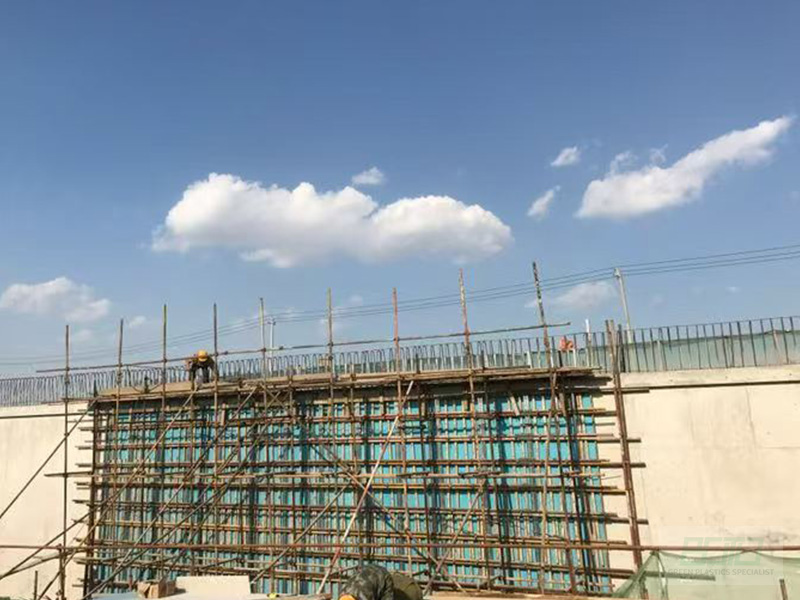

④. Bridges and Transportation Infrastructure: This application covers the casting of piers, pier caps, and box girders for highway bridges, as well as tunnel linings and retaining walls for tunneling projects.
⑤. Irregular and Customized Structures: Capitalizing on its excellent toughness and flexibility, this material is ideally suited for fabrication into complex and varied architectural forms—such as cylindrical columns, curved walls, and arched ceilings.

ABOUT BOTO

We are a leading manufacturer and supplier in the PVC extrusion industry. Our strategically located production bases in China and Malaysia span a total area of 130,000 square meters. We offer a comprehensive portfolio of PVC building materials, organized across four key sectors: PVC Sheet, PVC Trim & Moulding, Vinyl Fencing & Railing, and Vinyl Flooring.

Product QC

Color consistency

Colorimeter

Flatness Check 1

Flatness Check 2

QC Batch Number

Moulding Bowing Check

Size Check

Thickness Consistency

Product Packaging

Certificates

FAQ

A: We manufacture PVC sheets with densities ranging from 0.35 g/cm³ to 0.90 g/cm³. Lighter densities are perfect for signage and display, while higher densities (0.50 g/cm³ and above) are highly recommended for cabinetry, furniture making, and exterior trimboards due to their superior screw-holding strength and rigidity.
A: Rigid PVC and PVC foam sheet may be cut with a circular saw (using a very fine-toothed blade made for plastic panels, veneer or plywood). For best results, it is often better to cut just a few corrugated panels at a time to reduce vibration. Clamping the panels also helps. (But be careful clamping multiwall to avoid compression.) If using a standard circular saw blade, better results may be seen by running the blade backwards (remove and turn it over to reverse direction). Depending on thickness, some panels may also be cut by hand by carefully using tin snips or a utility knife.
A: Store sheets in a protected, shaded, ventilated site, with no direct exposure to sunlight and winds. For outdoor temporary storage, cover with an opaque protective tarp, avoiding heat-absorbing materials.
A: We manufacture products with a thickness range from 1mm up to 40mm. Our standard sheet sizes include 1220x2440mm, 1560x3050mm, 2050x3050mm, and 915x1830mm. Additionally, any sizes can be fully customized as per the customer’s specific request.
