BTP217
Shingle Mould

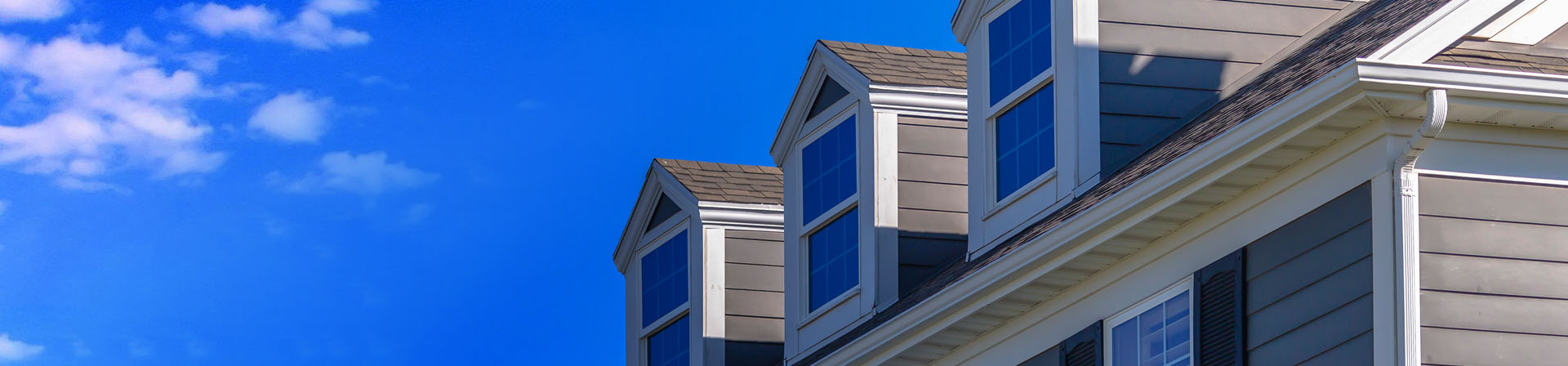

An exterior moulding installed at the top edge of the barge board or fascia board and abutting the shingles.
In addition to adding aesthetic detail to the structure, this type molding supports the shingles allowing them to extend further past the fascia board and provide better protection from the elements.
BTP217-1
BTP217-1

BTP217
Shingle Mould

Facebook
Twitter
LinkedIn

PVC Shingle Mould typically features a geometric profile with an S-curve or convex shape.Installed at the top edge of the fascia board, close to the lower edge of the roof tiles. It provides physical support for the tiles extending from the fascia board, preventing sagging and guiding rainwater away from the wall.

Model Number BTP217
Size 5/8″ย x 1-3/4″
Color White/Black
OEM/ODM Acceptable
Processing Service Cutting
Feature Fire-retardant, Water-proof

How To Choose

Features

โ‘ . Ultimate Weather Resistance: waterproof, unlike wood which will rot, crack, warp, or have its paint peel due to moisture.

โ‘ก. Insect and Mold Resistance: it has natural immunity to termites and other pests and will not breed mold.

โ‘ข. Easy Processing: Can be cut, drilled, and fixed using standard woodworking tools, and can even be heat-bent to fit curved architectural details.

โ‘ฃ. Low Maintenance: Usually shipped with a pure white glossy finish, ready to use without painting.

BTP210-1
BTP210
Shingle Mould
Contact Us Now
BTP217-1
BTP217
Shingle Mould
Contact Us Now
BTP287-1
BTP287
Rake Moulding
Contact Us Now

Installation Guide

โ‘ . Cutting: Using standard woodworking equipment. For power miter saws, carbide tooth blades are recommended. Do not use fine-tooth metal-cutting blades, do not use plywood or metal blades because the kerf of the blade is too thin and can cause heat buildup in the material. To maintain a smooth edge, support the trim across its entire length when you cut it.
โ‘ก. Drilling: Do not use bits made for rigid pvc, avoid heat buildup from excessive friction, and remove the shavings from the drill hole frequently.
โ‘ข. Gluing: Temperature variation will cause pvc trim board and mouldings to expand and contract. To prevent open miter joints, we highly recommend gluing all joints using a quality instant glue or pvc cement, always test adhesive brands before using. You should use a combination of glue and mechanical fasteners, such as โ€œ glue and screwโ€, only glue is not enough to ensure a long-term bond.

Installation Guide

โ‘ฃ. Painting: BOTO Trim products does not require painting but, like any pvc product, it will weather over time and painting will enhance these beautiful products and help them maintain color consistency for many years. 100% acrylic latex paint is recommended.
โ‘ค. Nailing:Use corrosion-resistant, smooth shank, annular threaded or spiral type nails, at least 6d in size and long enough to penetrate at least 1 1 /4″ into the substrate, stainless steel or hot-dipped galvanized nails or screws are recommended. Nails should be placed 12″ on center and, if possible, 3 /4″ from each edge.
โ‘ฅ. Cleaning:Use a soft bristle brush and a bucket of soapy water to remove normal dirt and grime. For especially stubborn stains, use a cleaner suitable for pvc products. Your local building materials retailers can supply several different brands, better test any cleaners before use.

Applications

BOTO PVC MOULDING are the perfect replacement of wood, with features of eco-friendly, lifetime never rot, low maintanance, moisture & termite proof, easy to install, does not promote mold or mildew, save time and labor with high energy efficiency, not easy to scratch, no painting required unless desired. Currently BOTO has 57 profile designs, covers almost all the general designs available in the North American marke. When you think of moulding, we are an enduring solution for all your moulding need.

ABOUT BOTO

We are a leading manufacturer and supplier in the PVCย extrusion industry. Our strategically located production bases in China andย Malaysia span a total area of 13,000 square meters. We offer aย comprehensive portfolio of PVC building materials, organized across four key sectors:PVC Sheet, PVC Trim & Moulding, Vinyl Fencing & Railing, and Vinyl Flooring.

Product QC

Color consistency

Colorimeter

Flatness Check 1

Flatness Check 2

QC Batch Number

Moulding Bowing Check

Size Check

Thickness Consistency

Product Packaging

Certificates

Take More Info

Factory Capabilities:
BOTO Plastics CO., LTD is a professional PVC sheet
manufacturer with modern production lines for extrusion,
calendering, and color matching. We offer OEM & ODM
services with fast turnaround for global clients.

Customization Process:
1.Select type (rigid/flexible), thickness, and color
2.Confirm sheet size and surface finish
3.Receive sample for approval
4.Proceed to bulk production and packaging
5.Worldwide shipping with quality assurance

FAQ

You can use the same high-quality fasteners typically used for wood installation. Standard nail guns perform excellently with BOTO Moulding and Trim Boards. Important Note: Never use staples, brads, or wire nails. The shanks of these fasteners are too small in diameter to adequately control the natural thermal expansion and contraction of the PVC material.
No, BOTO Moulding and Trim Boards are non-load-bearing and cannot be used in structural applications. They are designed strictly as decorative components. For any structural requirements, proper wood or metal load-bearing components must be incorporated. Always consult with your architect or builder to determine structural needs before installation
No, BOTO Moulding and Trim Boards usually do not require paint for protection. However, they can be easily painted if you wish to achieve a custom color match for your project or to neatly conceal filled nail holes.
For white or light colors, we highly recommend using a premium, 100% acrylic latex paint specifically developed for trim applications. Several paint manufacturers offer exterior coatings designed exclusively for PVC trim and mouldings. For darker colors, it is crucial to use paints explicitly labeled as “vinyl safe” or “heat reflective” to prevent heat buildup
We offer a comprehensive portfolio of premium PVC extruded products which are used for various applications such as signage and printing, cabinet making, outdoor furniture, agriculture, RV and building materials, organized across four key sectors: PVC Sheets, PVC Trim & Moulding, Vinyl Fencing & Railing, and Vinyl Flooring.
